Project 6

Property Analysis: Data Warehousing & ETL Implementation || SSIS, SQL Server, Visual Studio

🎯 Objective

To design and implement a scalable ETL pipeline and dimensional data warehouse that supports location, property, rental, crime, and school data integration using best practices in data engineering and modeling.

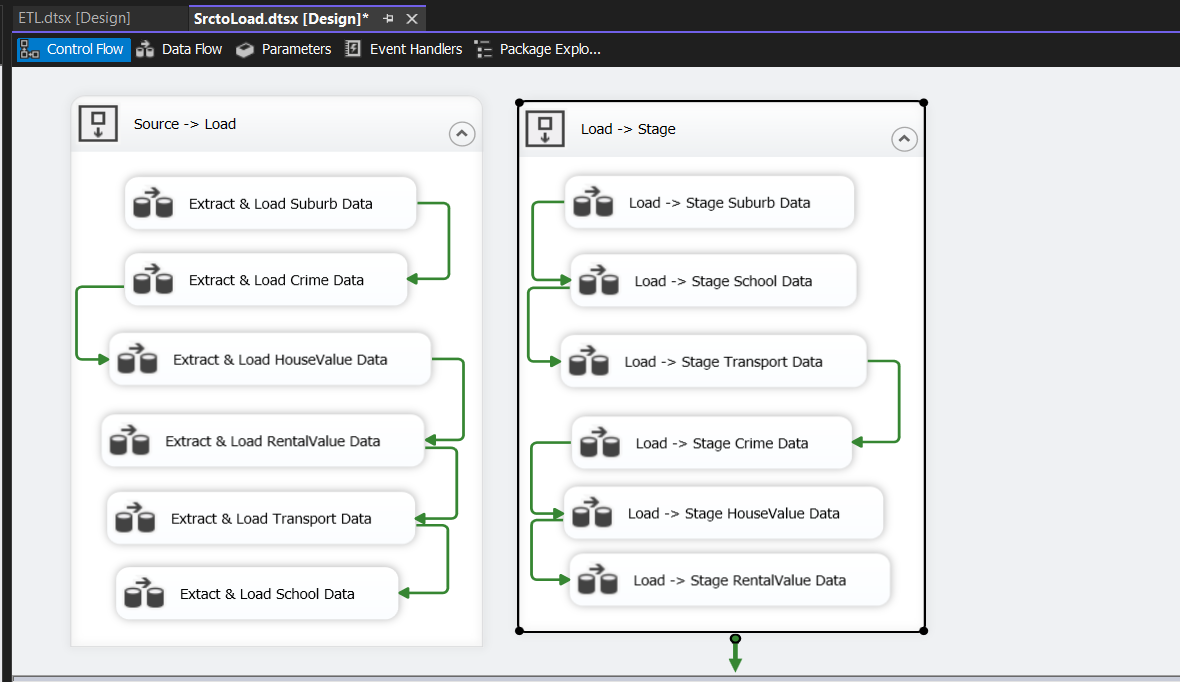

End-to-End SSIS ETL Pipeline from raw source to Star schema.

🧠 Project Overview

  • Developed a complete SSIS-based ETL solution to extract, transform, and load multi-source datasets into a Star Schema data warehouse, enabling structured, analytics-ready storage of property and public service data.
  • Tools Used: SQL Server | SSIS | Visual Studio
  • Techniques: ETL, Star Schema, Factless Fact Tables, Degenerate Dimensions, Data Warehousing

🔧 What I Did

  • Extracted data from multiple Excel files into load_* and stage_* tables using SSIS.
  • Applied business transformations with Derived Columns, Conditional Splits, and Lookups.
  • Modeled a Star Schema with fact and factless fact tables.
  • Composite primary key creation at staging level (State_code + Suburb) for uniqueness.
  • Defined degenerate dimensions for fields like RentalHouseType, Offence Category, Offence Sub-Category, and derived value categories.
  • Final cleaned data was loaded into Dim_* and Fact_* tables structured in a Star schema.

📋 Tables Created

  • Dimension tables: DimSuburb, DimSchool, DimTransport
  • Factless Fact tables: FactlessFact_School, FactlessFact_Transport
  • Fact tables: FactCrime, FactHouseValue, FactRentalValue

📦 Key Deliverables

  • Complete multi-stage ETL pipeline from raw data to dimensional model.
  • Structured raw data into a Star Schema model to support analytical reporting.
  • Categorized House Value, Rental Value, and Crime Recorded Incidents data using Derived Columns.
  • Integrated degenerate dimensions and factless fact tables for flexible querying.
  • Clean, query-ready data warehouse prepared for BI consumption.


See Code here!
