Project 10

Property Data Engineering Competition Sprint – Part 1 || SQL Server, SSIS, Visual Studio

🎯 Objective

To build an integrated analytical solution that empowers users to explore suburb-level insights across House Value, Rental Trends, School Quality, Transport Accessibility, and Crime Rates, while enabling seamless drill-through to SSRS paginated reports for detailed, printable analysis.

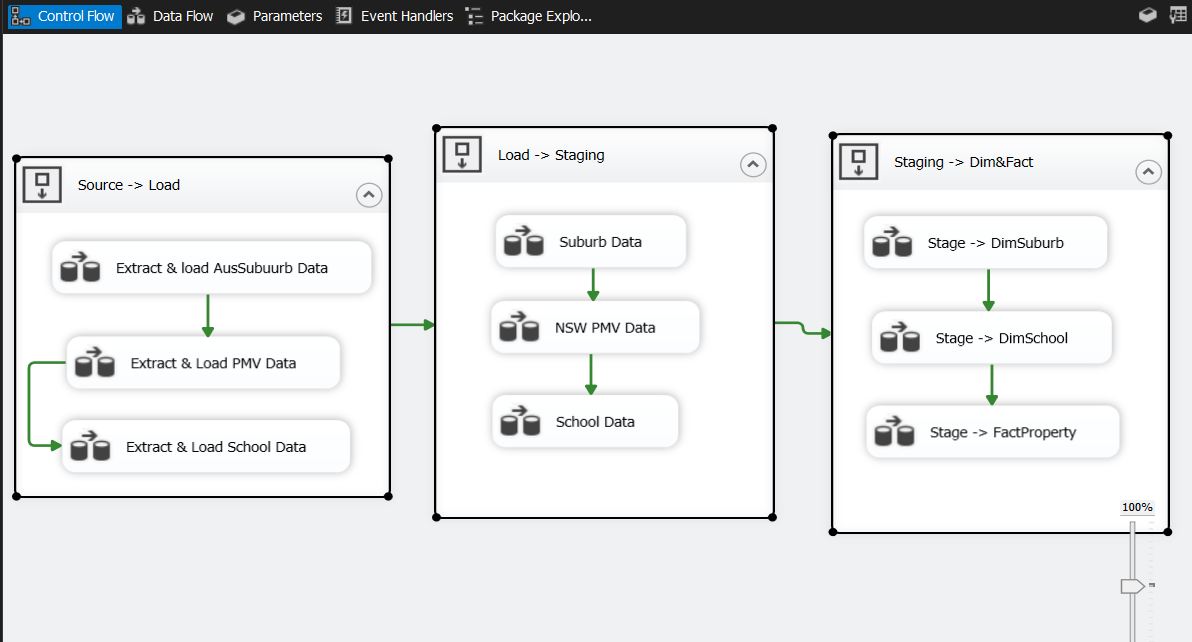

End-to-End SSIS ETL Pipeline from raw source to Snowflake schema.

🧠 Project Overview

  • To design and implement a structured ETL pipeline using SSIS that transforms raw property and school data into a Snowflake-modeled data warehouse, enabling accurate and efficient reporting.
  • Tools Used: SQL Server | SSIS | Visual Studio
  • Techniques: ETL Design, Snowflake Schema, Composite Keys, Degenerate Dimensions, Data Cleansing, Lookup Transformations

🔧 What I Did

  • Extracted raw Excel files and loaded them into load_* staging tables.
  • Performed initial transformations using load_* as source, and loaded results into intermediate stage_* tables.
  • Applied business rules using Derived Columns (e.g., property value categorization).
  • Used Lookup transformations to fetch foreign keys from dimension tables.
  • Final cleaned data was loaded into Dim_* and Fact_* tables structured in a Snowflake schema.

📋 Tables Created

  • Fact table: FactProperty
  • Dimension tables: DimSuburb, DimSchool, DimDate

📦 Key Deliverables

  • Multi-layered SSIS ETL pipeline (Load → Stage → Dim/Fact).
  • Composite primary key creation at staging level (Postcode + Suburb) for uniqueness.
  • Property categorization using Derived Columns and Conditional Splits.
  • Snowflake schema with normalized dimensions and lookup-driven relationships.
  • Clean, query-ready data warehouse prepared for BI consumption.


See Code here!
